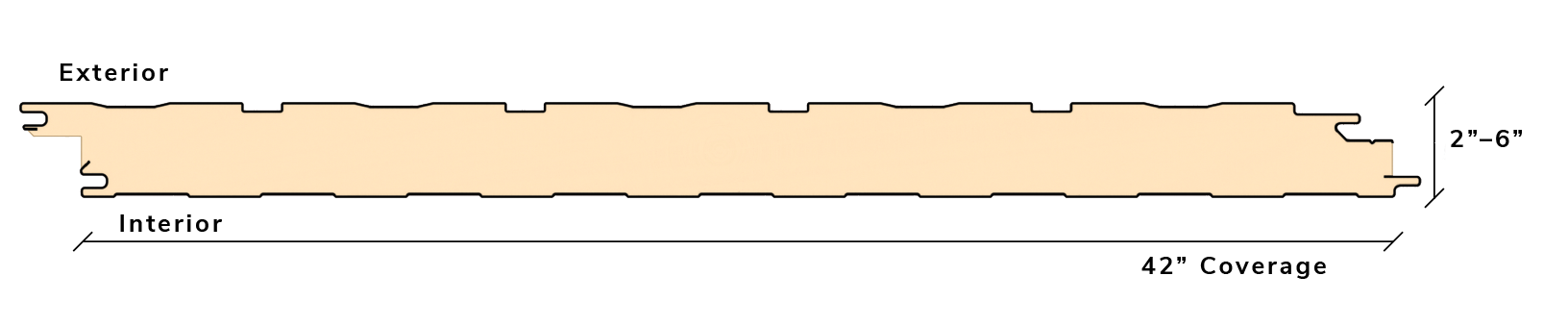

The ShadowLine insulated metal panel is our most dramatic profiled offering. The panel has five, ¼” deep flutes along the exterior face. The 1¼” reveal disguises the side-joint and yields an aesthetic, monolithic look. The unique Green-Lock side-joint helps ensure a high-performance vapor seal.
![shadowline1-Front large](https://greenspanprofiles.com/wp-content/uploads/2019/02/shadowline1-Front-large.jpg)
![shadowline2_joint](https://greenspanprofiles.com/wp-content/uploads/2019/02/shadowline2_joint.jpg)
![shadowline3-2014-08-01 15.15.57](https://greenspanprofiles.com/wp-content/uploads/2019/02/shadowline3-2014-08-01-15.15.57.jpg)
Panel Use | Exterior Wall |
Coverage Width | 42-inch |
Thickness | 2, 2.5, 3, 4, 5, 6, 8-inch |
Length | 8’-0” to 75’-0” |
Exterior Gauge | 26, 24, 22 |
Interior Gauge | 26 |
Exterior Substrate | Galvalume® |
Interior Substrate | Galvalume® Stainless Steel |
Exterior Finish | Siliconized Polyester, low-gloss PVDF |
Interior Finish | Polyester, Siliconized Polyester, Plastisol (PVC) |
Exterior Texture | Embossed, Smooth |
Interior Texture | Embossed, Smooth |
Joint | Green-Lock, offset double tongue-and-groove |
Core | Continuously poured-in-place polyisocyanurate insulating foam |
R-Value | R-8 per inch of thickness (nominal) |
![ShadowLine-diagram-11-10-23](https://greenspanprofiles.com/wp-content/uploads/2023/11/ShadowLine-diagram-11-10-23.png)
![shadowline_hi_res_final_01 3-8-19 ShadowLine](https://greenspanprofiles.com/wp-content/uploads/2019/03/shadowline_hi_res_final_01-3-8-19.jpg)
