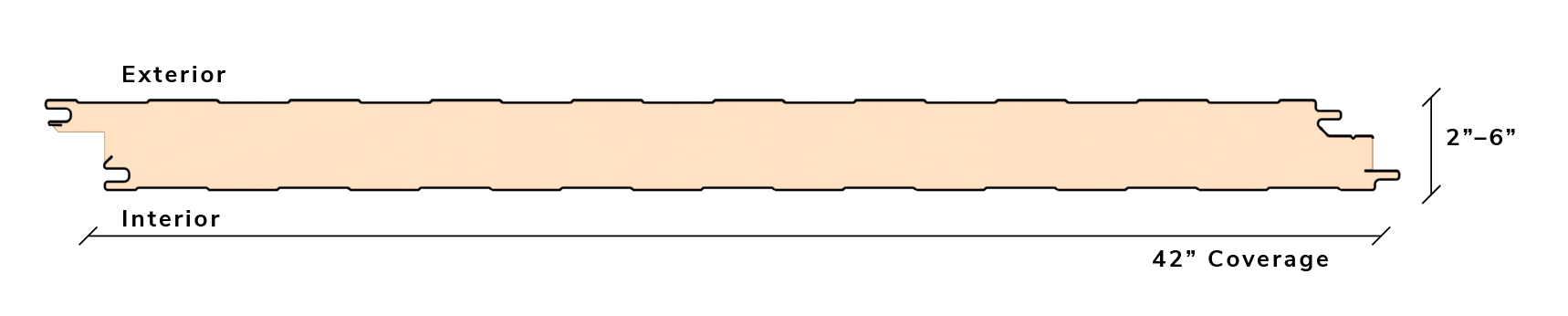

HSE stands for Heavy Stucco Embossed. MesaLine HSE was designed to satisfy those who desire something different for their Commercial/Industrial structure. Having all the positive attributes of the tried-and-true MesaLine profile, MesaLine HSE adds a heavy stucco embossment for a more dramatic impact. As with all of our wall profiles, MesaLine HSE has the unique Green-Lock side-joint helping to ensure a high-performance vapor seal.
| Panel Use | Exterior Wall |
| Coverage Width | 42-inch |
| Thickness | 2, 2.5, 3, 4, 5, 6, 8-inch |
| Length | 8’-0” to 75’-0” |
| Exterior Gauge | 26, 24 |
| Interior Gauge | 26 |
| Exterior Substrate | Galvalume® |
| Interior Substrate | Galvalume® Stainless Steel |
| Exterior Finish | Siliconized Polyester, low-gloss PVDF |
| Interior Finish | Polyester, Siliconized Polyester, Plastisol (PVC) |
| Exterior Texture | Heavy Embossed |
| Interior Texture | Embossed, Smooth |
| Joint | Green-Lock, offset double tongue-and-groove |
| Core | Continuously poured-in-place polyisocyanurate insulating foam |
| R-Value | R-8 per inch of thickness (nominal) |
