We specifically designed the MaxLine insulated metal panel as our widest and most economical insulated metal panel offering. It is intended to maximize installation efficiency and maximize cost-effectiveness. The unique Green-Lock side-joint facilitates accurate sealant placement and helps ensure a high-performance vapor seal.
![maxline2-heb03](https://greenspanprofiles.com/wp-content/uploads/2019/02/maxline2-heb03.jpg)
![maxline1_joint](https://greenspanprofiles.com/wp-content/uploads/2019/02/maxline1_joint.jpg)
![maxline3-IMG_2763-1](https://greenspanprofiles.com/wp-content/uploads/2019/02/maxline3-IMG_2763-1.jpg)
Panel Use | Partition Wall, Liner Wall, Tee Supported Ceiling |

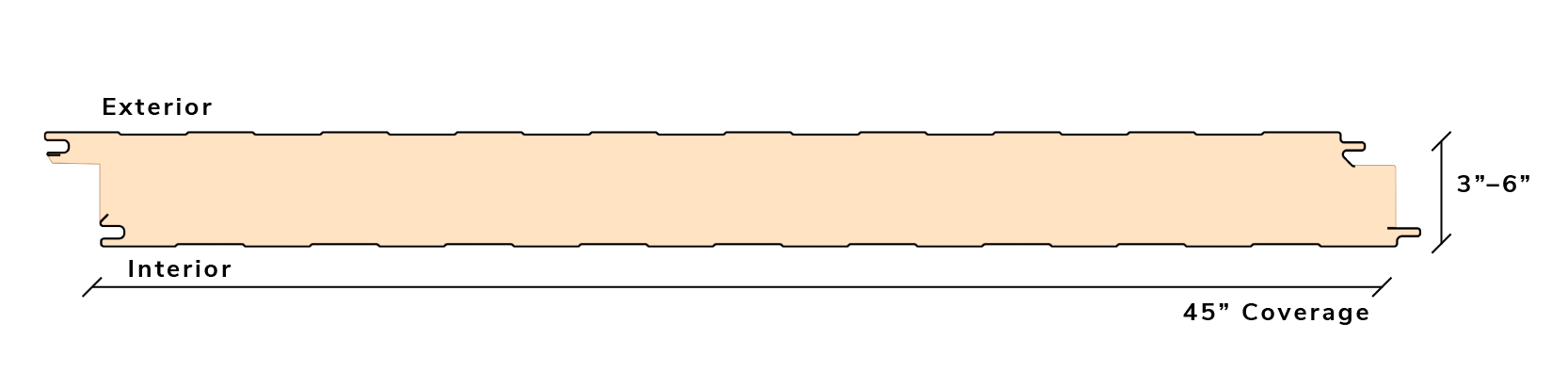

Coverage Width | 45-inch |
Thickness | 3, 4, 5, 6, 8-inch |
Length | 8’-0” to 75’-0” |
Exterior Gauge | 26 |
Interior Gauge | 26 |
Exterior Substrate | Galvalume® |
Interior Substrate | Galvalume® |
Exterior Finish | Polyester, Siliconized Polyester, Plastisol (PVC) |
Interior Finish | Polyester, Siliconized Polyester, Plastisol (PVC) |
Exterior Texture | Embossed, Smooth |
Interior Texture | Embossed, Smooth |
Joint | Green-Lock, offset double tongue-and-groove |
Core | Continuously poured-in-place polyisocyanurate insulating foam |
R-Value | R-8 per inch of thickness (nominal) |
![MaxLine-diagram-11-10-23](https://greenspanprofiles.com/wp-content/uploads/2023/11/MaxLine-diagram-11-10-23.png)
![maxline_HR 3-21-19 maxline_HR 3-21-19](https://greenspanprofiles.com/wp-content/uploads/2019/03/maxline_HR-3-21-19.jpg)
